Advanced Engineering Solutions:

This project encompasses the comprehensive design and implementation of electrical systems across various sectors, including the textile industry, commercial buildings, and healthcare facilities. The scope of work included meticulous designing, coordinating, and executing electrical systems to meet the specific needs and challenges of each sector.

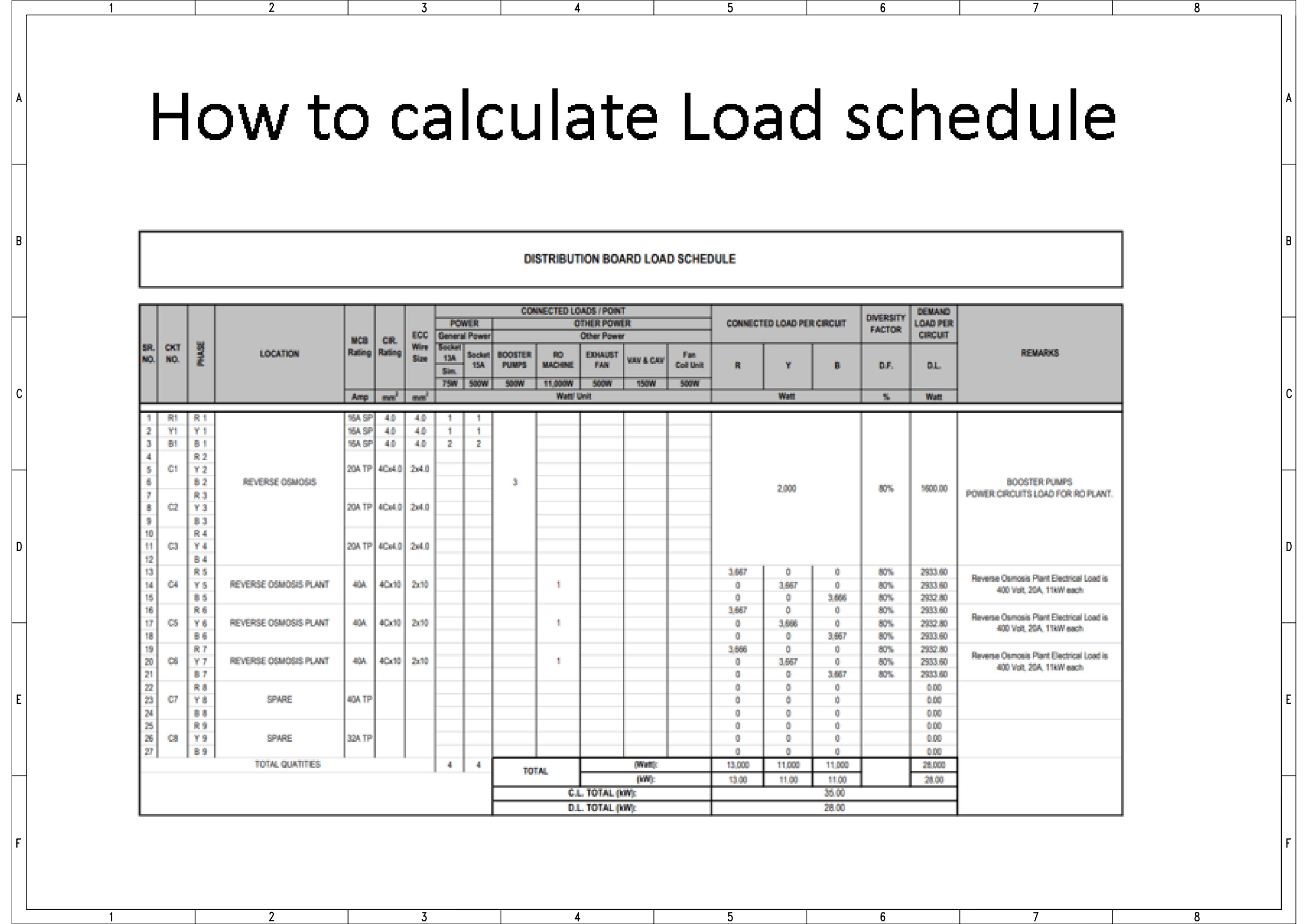

Load Calculation:

Objective: To perform accurate load calculations to ensure the system meets operational demands without overloading.

Key Activities:Load assessment based on equipment and operational requirements. Calculation of total power consumption and distribution.

Single Line Diagrams (SLDs):

Objective:To develop clear and concise single line diagrams for better visualization of electrical systems.

Key Activities:Detailed representation of the electrical distribution system. Integration of essential components like transformers, breakers, and protective devices.

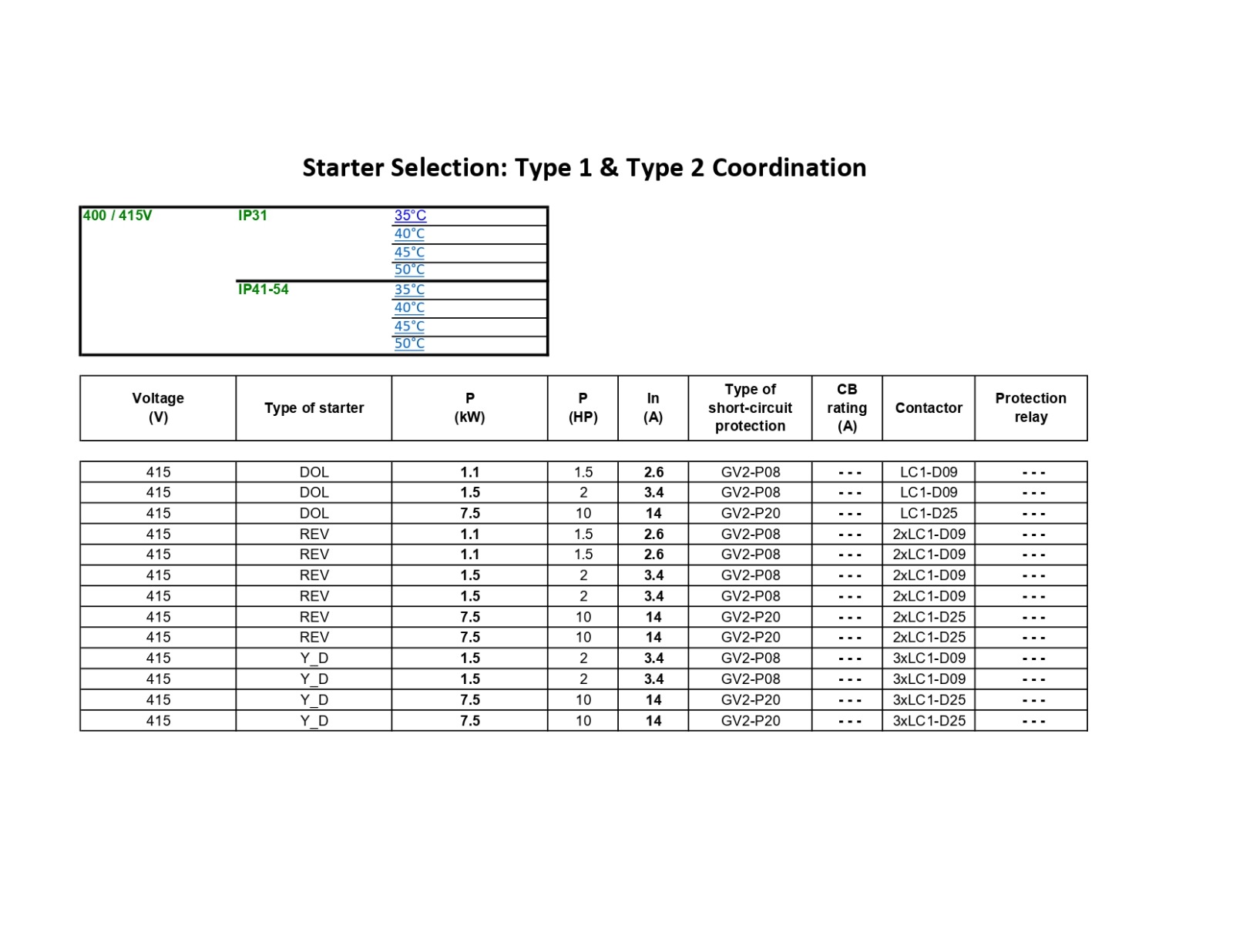

Starter Selection with Type 1 and Type 2 Coordination:

Objective: To select and design starters that provide optimal coordination and protection for motors and other equipment.

Key Activities: Analysis of motor starting conditions and load characteristics. Selection of appropriate starters to ensure reliable and safe operation.

Cable Management and Calculations:

Objective:Optimize cable systems for efficient power transmission and management.

Key Activities: Cable Sizing: Perform accurate cable calculations based on capacity, voltage requirements, and thermal ratings to ensure efficient transmission and minimize power losses.

Cable Tagging: Implement a systematic tagging system for easy identification, troubleshooting, and maintenance, using durable materials and maintaining a comprehensive cable database.

Trench Design: Design safe and efficient cable trench layouts with appropriate dimensions, spacing, and insulation, adhering to safety and environmental standards.

Voltage Drop and System Efficiency:

Objective:Ensure system reliability by managing voltage drop and maintaining efficient operations.

Key Activities: Voltage Drop Analysis: Calculate voltage drops across the distribution system, optimizing cable lengths and sizes to maintain acceptable levels.

Efficiency Measures: Implement corrective actions to mitigate excessive voltage drops, enhancing overall system performance and reliability.

Acknowledgment:

I extend my gratitude to MMG Engineering Associate (PVT.) LTD and Wali Jan ASSOCIATES for the opportunities and support provided during these projects.
